Svbony

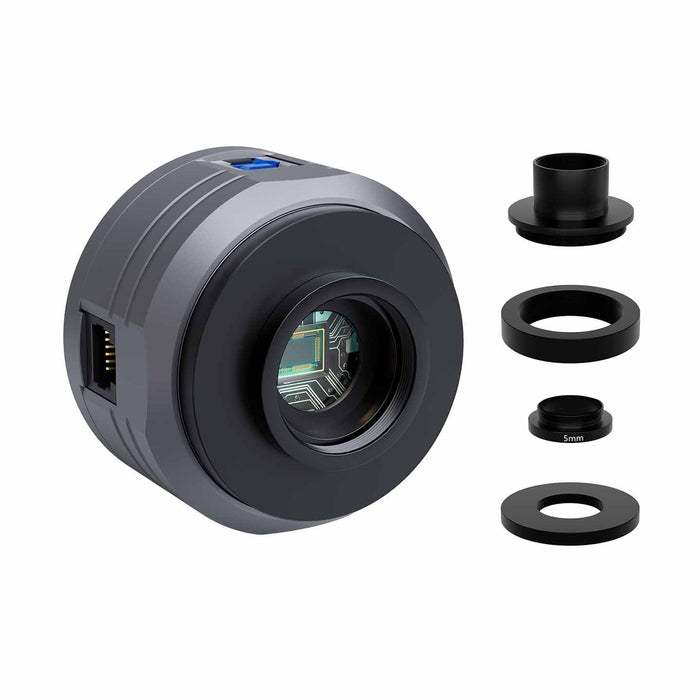

SVBony SC715C OSC Planetary Camera Color CMOS IMX715 USB3.0 (W9305A)

SVBony SC715C OSC Planetary Camera Color CMOS IMX715 USB3.0 (W9305A)

Regular price $133.07 USD
Regular price $201.62 USD Sale price $133.07 USD
Sale Sold out
Shipping calculated at checkout.

SVBony SC715C OSC Planetary Camera Color CMOS IMX715 USB3.0



  • IMX715 sensor; 1/2.8-inch Format, 1.45μm x 1.45μm pxel size, supports up to 8 million pixels, enabling it to capture extremely detailed image information. It offers higher dynamic range and lower noise,  ensuring high-quality and detailed images even in low-light conditions, meeting the needs of professional astrophotography; effectively reduces star trailing or blur during long exposures, ensuring that no details are lost;
  • STARVIS II technology; the SC715C osc camera employs advanced image processing algorithms, resulting in higher sensitivity and lower noise levels;
  • USB 3.0 Port & ST4 Guide; the SC715C astronomy camera supports data transmission at 45.5 frames per second at full resolution; the cmos camera IMX715 can also connect to an equatorial mount to adjust its position in real-time, preventing shake caused by positional drift and ensuring clear, detailed images;
  • 512MB DDR3 cache; allowing the osc camera to respond quickly to every command, reducing delay during focusing and zooming. It ensures smooth, seamless shooting, making it easy for you to effortlessly capture every brilliant moment;
  • C/CS-mount eyepiece solution; suitable for different installation needs.



Technical Specifications

Brand Svbony
Model SC715C
Material  Aluminum alloy, sandblasted, anodized
Color  Iron grey
Sensor  SONY IMX715 Color Sensor
Processor  FPGA
Sensor Size  1/2.8 inch
Diagonal Length  6.39mm
Resolution  8.4 Mega Pixels (3840 * 2160)
Pixel Size  1.45um * 1.45um
Pixel Depth  12bit
Shutter Type  Electric Rolling Shutter
Dynamic Range  72.8dB (1-12 stops)
Exposure Time  0.1ms to 900s
Readout Noise  0.41-2.29e-
Pixel Binning  1x1, 2x2
Data Cable  USB 3.0 B-Type data cable
Autoguider Cable  Autoguider data cable
Camera Interface 1  USB 3.0 B-Type data interface
Camera Interface 2  ST4 autoguider interface
Camera Interface 3  1/4 inch thread at the rear, for mounting on a camera tripod
Camera Interface 4  Front M42 male thread
Adapter 1  M42 female thread to CS thread
Adapter 2  M42 female thread to M42 female thread
Adapter 3  M42 male thread to 1.25 inch barrel (1.25'' female thread)
Adapter 4  CS-C 5mm adapter
Weight  147g (body only)

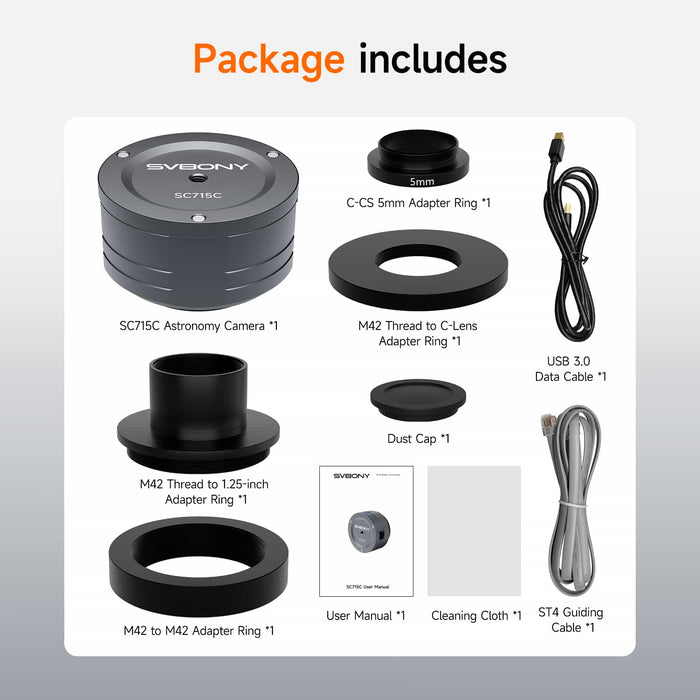

In the Box

-SC715C Astronomy Camera *1
-M42 Thread to 1.25-inch Adapter Ring *1
-M42 to M42 Adapter Ring *1
-C-CS 5mm Adapter Ring *1
-M42 Thread to C-Lens Adapter Ring *1
-Dust Cap *1
-USB 3.0 Data Cable *1
-ST4 Guiding Cable *1
-Cleaning Cloth *1
-User Manual *1



Warranty

Svbony 1-Year Warranty

View full details
